Recover Controlled Fuel Fractions From Waste Lubricating Oil
VBOLT's Waste Lubricating Oil to Diesel Plant processes used lubricating, hydraulic, gear and transmission oils through feedstock pretreatment, dehydration, vacuum distillation and configurable finishing. The middle distillate may be suitable as an industrial fuel fraction after laboratory release, but it is not automatically automotive diesel.
Used lubricating oils can contain water, sludge, oxidation products, additives, metals, sulfur, chlorine and mixed chemicals. These contaminants affect equipment selection, product stability, emissions, residue management and the permitted end use. VBOLT therefore develops each process from representative feed samples and a defined product specification.
1. Project Application and Process Objective
The plant is designed to separate and condition suitable waste lubricating oils into controlled light, middle and heavy fractions for an approved industrial fuel market.
Main Processing Objectives
- Remove free water, sediment and coarse solids
- Separate low-, middle- and high-boiling fractions under vacuum
- Improve consistency of density, viscosity and distillation range
- Reduce selected contaminants with an appropriate finishing step
- Release each product fraction against agreed laboratory limits
Suitable Project Types
- Licensed waste-oil collection and recycling companies
- Industrial plants with segregated used-lubricant streams
- Oil service companies with traceable feedstock
- Resource-recovery projects with approved fuel outlets
- Industrial fuel processors operating under local permits
2. Feedstocks and Acceptance Testing
Every incoming batch or feed stream requires documentation, sampling and compatibility review before processing.

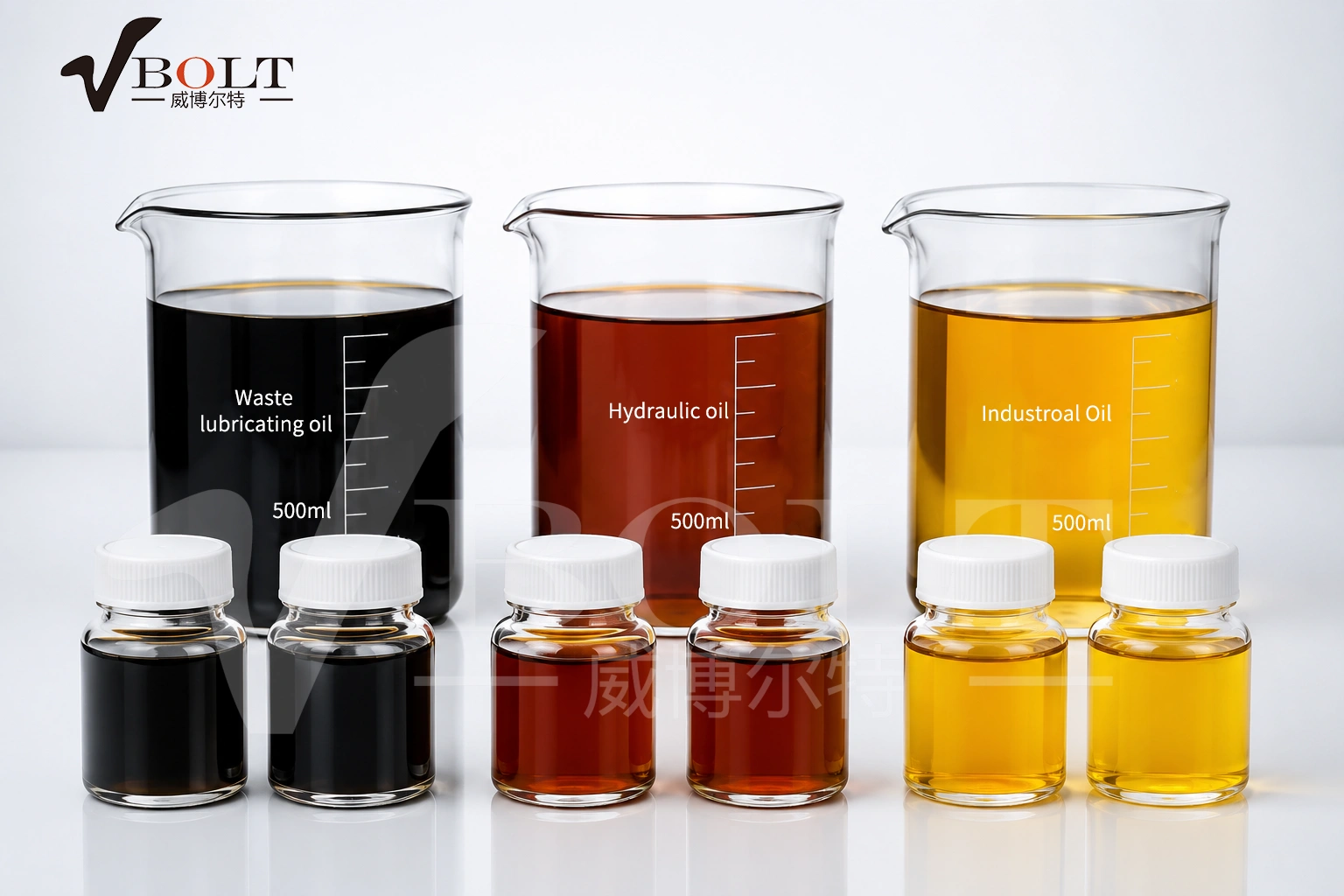

Potential Feedstocks
- Used industrial lubricating oil
- Used hydraulic oil
- Used gear and transmission oil
- Waste machinery and circulating oil
- Segregated compressor or turbine oil
- Approved blends of compatible waste lubricants
Brake fluids, water-glycol fluids, PCB-contaminated oils, halogenated solvents and unknown chemical mixtures must be isolated. They are not accepted without laboratory identification and a compliant handling route.
Recommended Feed Tests
- Water and sediment
- Density and kinematic viscosity
- Distillation curve and boiling range
- Flash point and pour point
- Sulfur and total chlorine
- Acid number, ash and carbon residue
- Metals, solids and filterability
- Compatibility and storage stability
3. Product Fractions and Intended Use
The product slate depends on the feed analysis, selected cut points, finishing system and local fuel requirements.
Light Fraction
Water and low-boiling hydrocarbons are condensed and collected separately. Their reuse or disposal depends on composition, flash point and local volatile-organic-compound controls.
Diesel-Range Middle Distillate
The middle cut is a diesel-range industrial fuel fraction. It may be evaluated for approved industrial burners, furnaces or boilers only after laboratory testing confirms that both the fuel and combustion equipment meet applicable requirements.
Heavy Fraction and Bottoms
Additive residues, carbon, metals and high-boiling compounds concentrate in the heavy stream and residue. These materials require sampling, contained storage and an authorized reuse or disposal route.
Vacuum distillation and polishing do not by themselves guarantee compliance with EN 590, ASTM D975 or another road-diesel specification. Engine, generator, marine and on-road use require full fuel testing, regulatory approval and confirmation from the equipment manufacturer.
4. Waste Lubricating Oil Distillation Process
Step 1 - Sampling, Segregation and Pretreatment
Incoming oil is sampled, separated by compatibility and filtered. Free water, sediment and coarse contamination are removed before heating.
Step 2 - Dehydration and Light-Ends Removal
Controlled heating removes residual water and the lowest-boiling components. Condensed streams are collected in dedicated receivers for testing and compliant management.

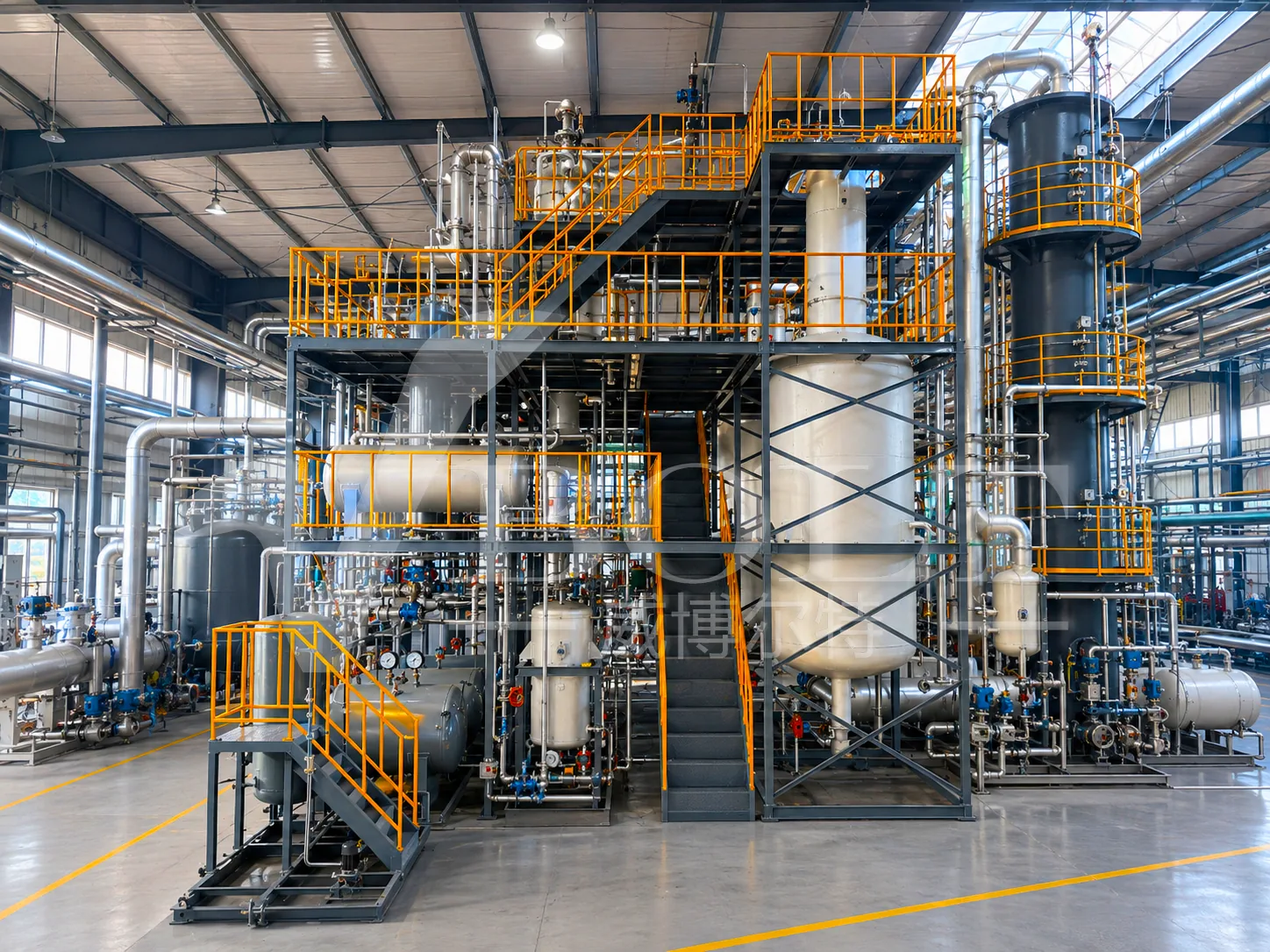

Step 3 - Vacuum Distillation and Fractionation
Reduced pressure allows the required hydrocarbon fractions to be separated at lower temperatures. The fractionation and condensation system directs light, middle and heavy cuts to separate tanks.
Step 4 - Configurable Finishing
Filtration, adsorption, deodorization or a suitable desulfurization process may be added when feed tests and the product target justify them. The selected system must include chemical handling, recovery and waste-management provisions.
Step 5 - Product Testing and Storage
Each fraction is tested before release to a dedicated storage tank. Off-specification material is retained for reprocessing or managed under the approved quality plan.
Step 6 - Gas, Water and Residue Management
Non-condensable process gas may be recovered in a closed fuel-gas system where the design and permit allow it. Excess gas, wastewater and heavy residue require controlled treatment, monitoring and disposal.
5. Fuel Quality and Release Testing
Product release should follow the intended market, local regulations and a documented test plan.
| Test Area | Why It Matters |
|---|---|
| Distillation range, density and viscosity | Defines the usable fraction and handling behavior |
| Flash point and storage stability | Affects safe storage, transport and fuel aging |
| Sulfur, chlorine, ash and metals | Affects emissions, corrosion, deposits and permitted use |
| Water, sediment and carbon residue | Affects filtration, burners and maintenance |
Additional testing such as cetane index, lubricity, cold-flow properties and compatibility may be required for an engine-related application. The buyer is responsible for confirming the applicable fuel standard and permitted use in the country of installation.
6. Core Technical Design
Controlled Vacuum Fractionation
- Lower separation temperature than comparable atmospheric operation
- Adjustable product cut points
- Separate collection of light, middle and heavy fractions
- Reduced risk of uncontrolled thermal cracking
Heat Integration and Utilities
- Feed preheating options
- Heat recovery matched to the operating schedule
- Insulated hot-oil and steam piping
- Utility consumption defined during engineering

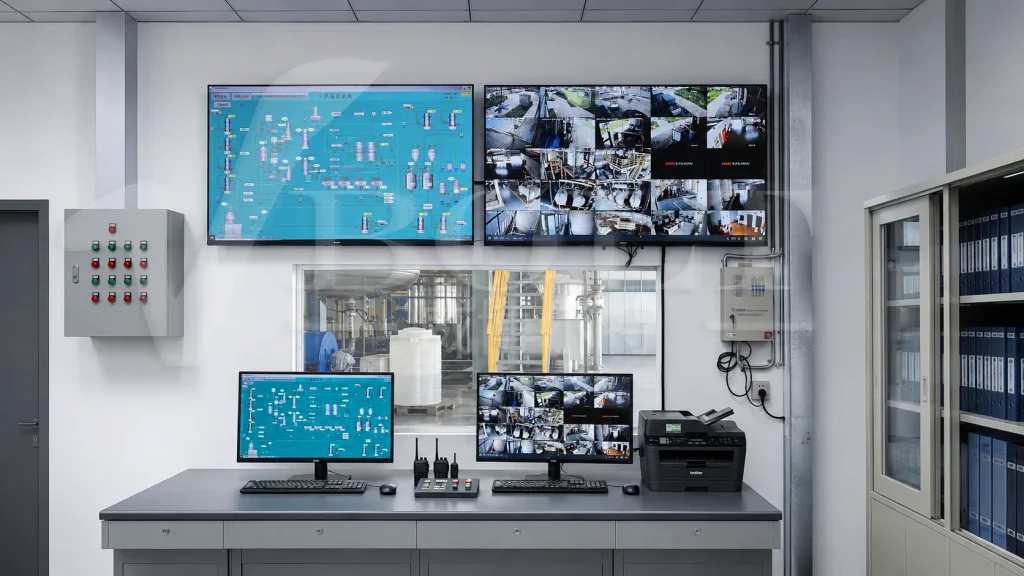

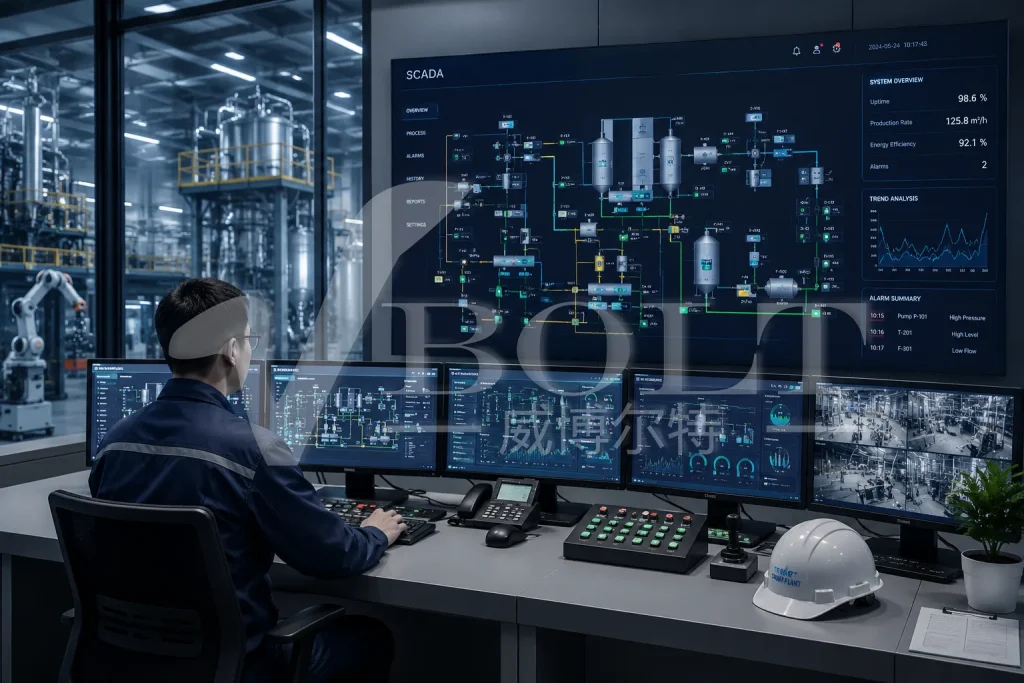

Automation and Safeguards
- PLC control with operating-data monitoring
- Temperature, pressure, vacuum and level alarms
- Emergency shutdown and overpressure protection
- Site-specific electrical and fire-safety design
Environmental Control Systems
- Closed condensate collection
- Process-gas handling
- Wastewater separation
- Contained heavy-residue discharge
7. Capacity and Design Basis
The processing rate is selected from verified feed availability, operating hours, the distillation curve, target product cuts and available site utilities.
| Selection Factor | Required Project Input |
|---|---|
| Feed availability | Average and peak daily waste-oil volume |
| Feed quality | Water, solids, sulfur, chlorine, metals and distillation profile |
| Target product | Required fuel fractions and acceptance limits |
| Operating basis | Hours per day, days per year and planned maintenance |
Batch, semi-continuous or continuous operation can be evaluated. Nameplate capacity is confirmed only after material-balance calculations, heat-load review and equipment sizing.
8. Product Recovery Factors
There is no single diesel-range yield that applies to every used lubricating oil. A project estimate must identify the tested feedstock, product cut specification and treatment route.
| Feed or Process Factor | Effect on Product Recovery |
|---|---|
| Water, solids and light ends | Reduce recoverable middle distillate |
| Feed distillation curve | Defines available light, middle and heavy fractions |
| Additives, metals, sulfur and chlorine | May require additional treatment or restrict end use |
| Selected product cut points | Change the balance between recovery and quality |
VBOLT can prepare a preliminary material balance after receiving a representative sample and laboratory report. Any performance guarantee must define feed conditions, operating basis, test method and product acceptance limits.

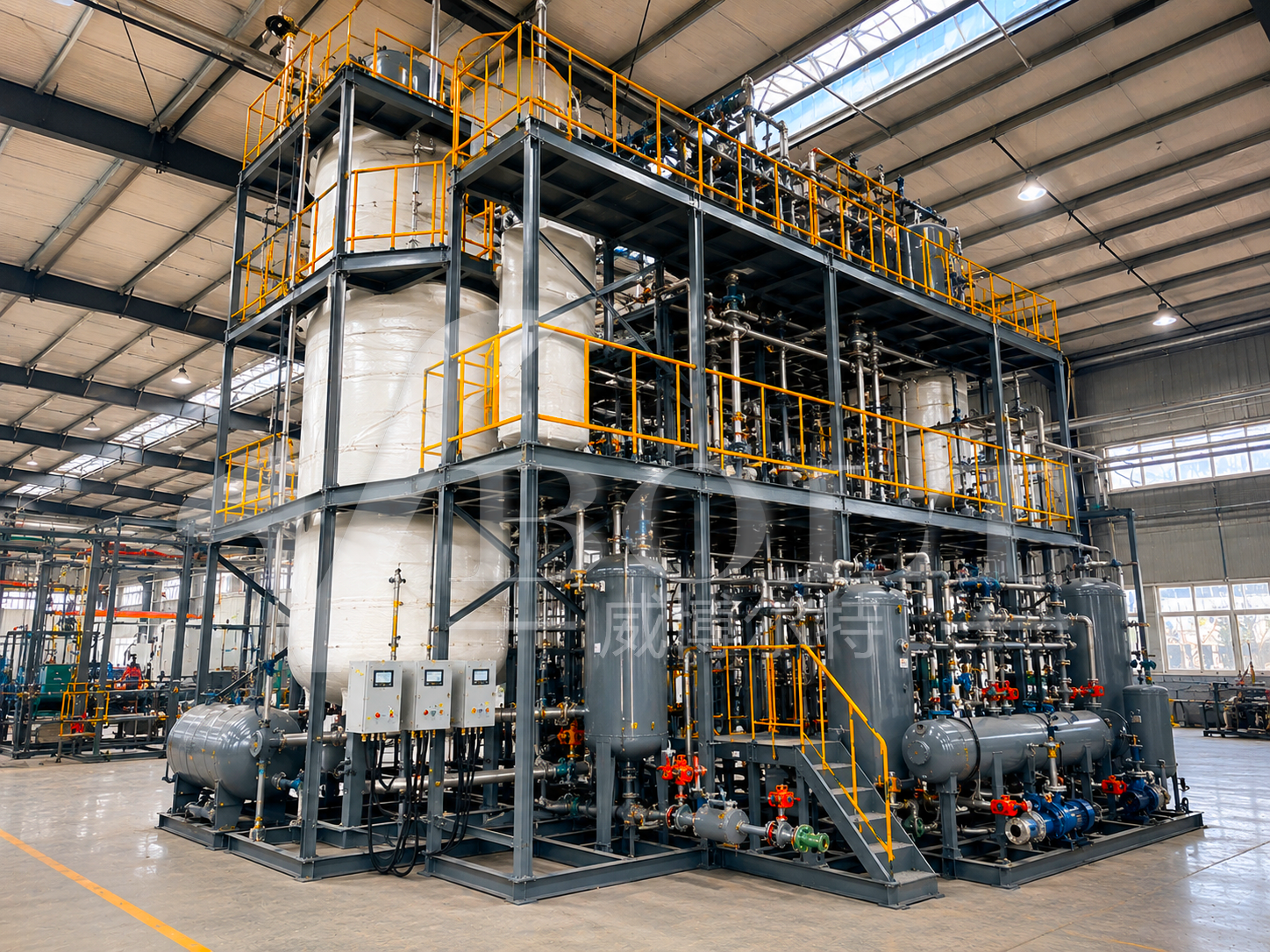

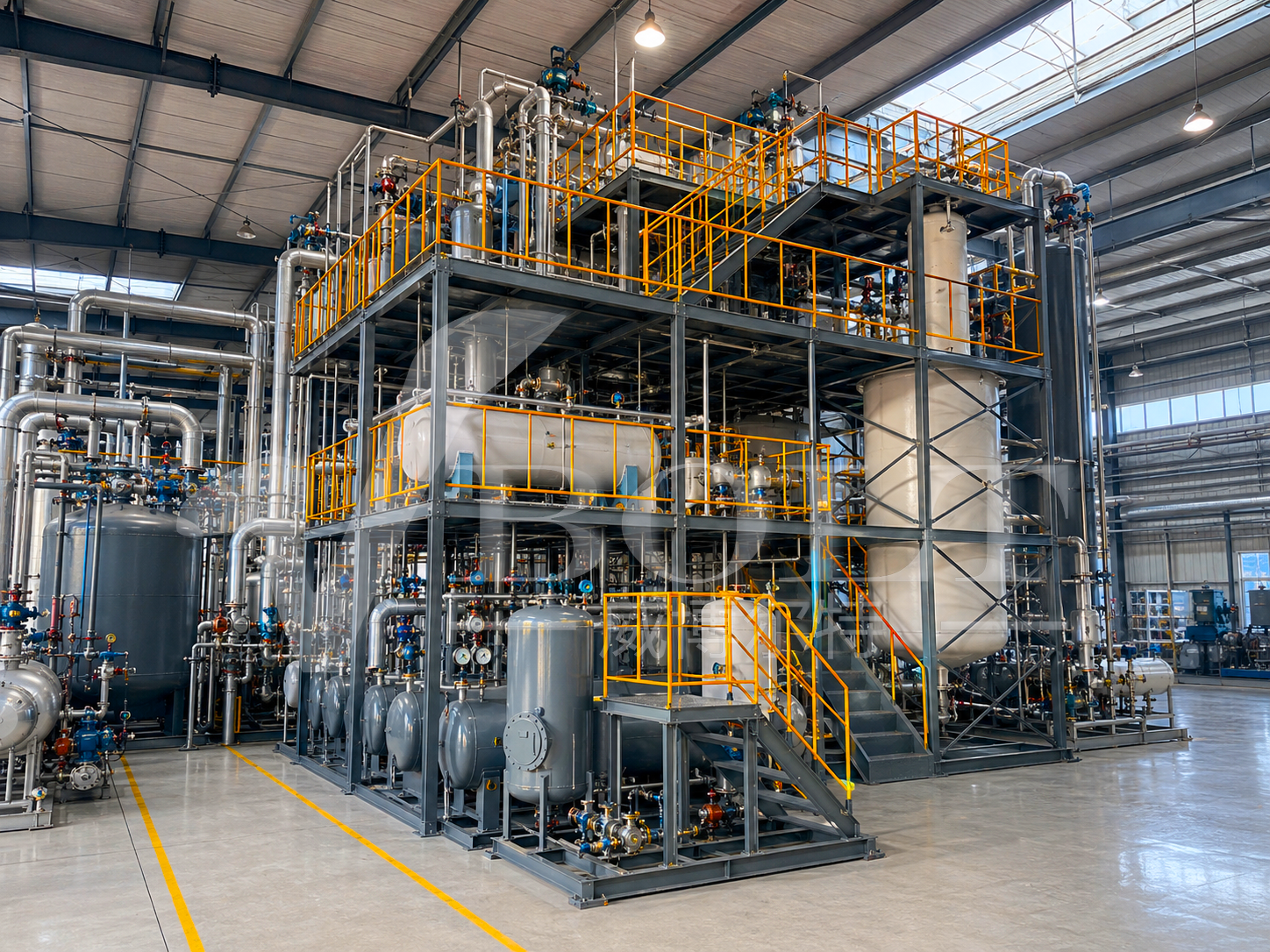

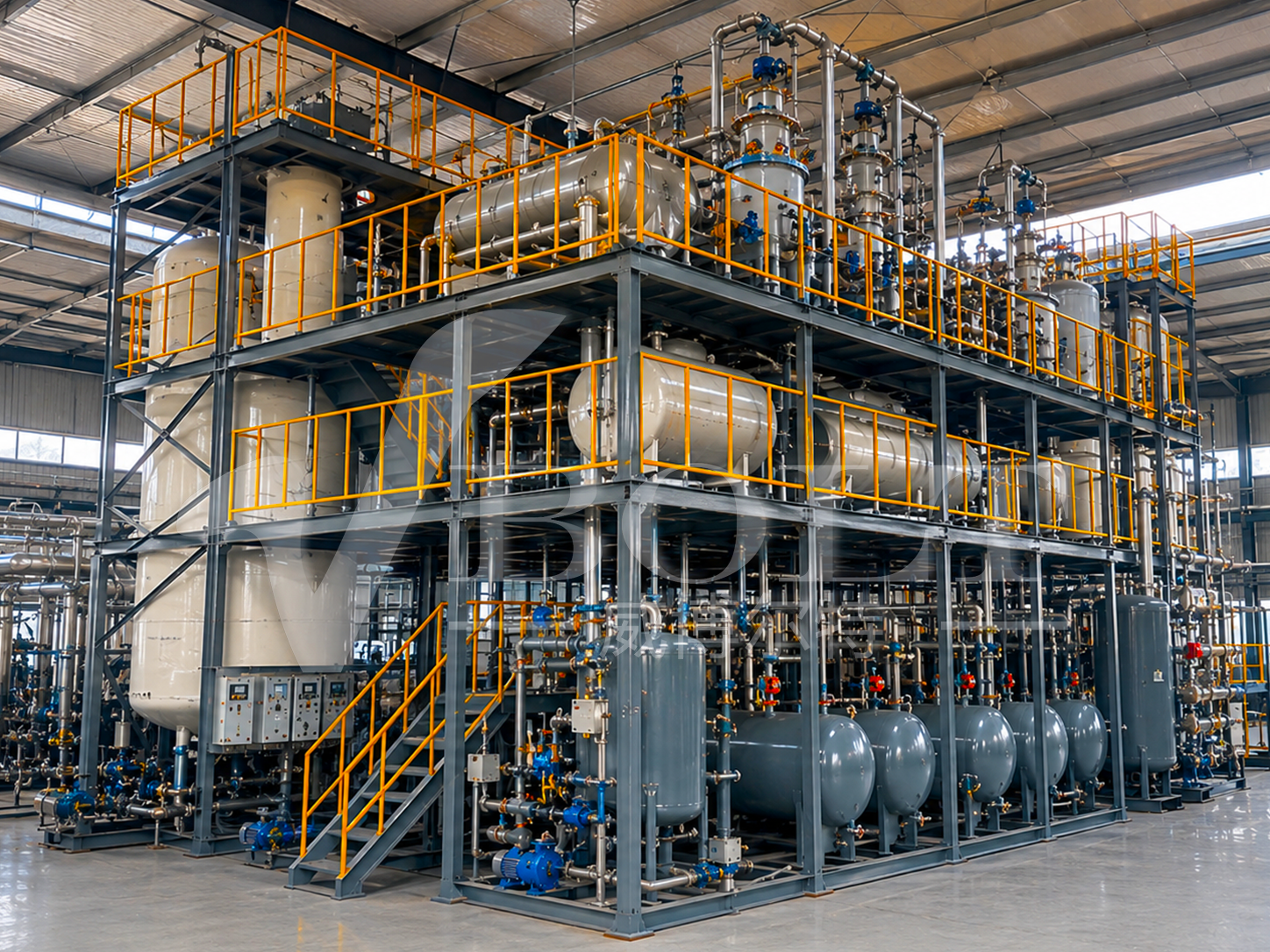

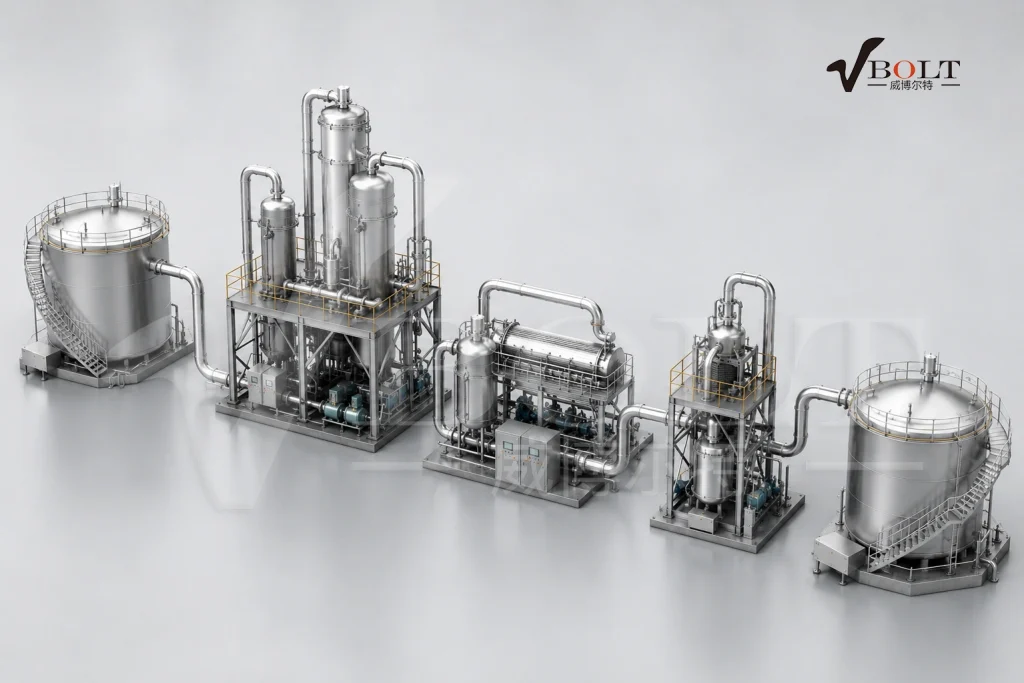

9. Main Equipment
A complete waste lubricating oil distillation plant may include:
- Feed sampling and raw-oil storage system
- Filtration, settling and dehydration equipment
- Vacuum distillation and fractionation section
- Heating and heat-recovery system
- Condensers and dedicated fraction receivers
- Vacuum-generation system
- Configurable filtration or polishing unit
- Separate product storage tanks
- Process-gas and emission-control equipment
- Wastewater and residue collection system
- PLC, electrical control and safety instrumentation
- Interconnecting piping, valves and pumps
10. Optional Process Modules
Optional modules are selected only when supported by feed testing, the product target and site requirements:
- Continuous feeding and automatic level control
- Additional fractionation stages
- Adsorption or final polishing
- Suitable desulfurization or deodorization process
- Closed chemical handling and recovery system
- Heat recovery and feed-preheating package
- Remote operating-data monitoring
- Automatic heavy-residue discharge
- Skid-mounted or modular equipment layout
- Site-specific hazardous-area and fire-safety package
The final process selection must account for chemical compatibility, corrosion, spent solvent or adsorbent, wastewater and local emission limits.
11. Approved Industrial Applications
After laboratory release and site approval, a suitable middle-distillate fraction may be evaluated for:
- Industrial boilers designed for the tested fuel
- Industrial furnaces and kilns
- Cement and mineral-processing plants
- Asphalt and aggregate heating systems
- Approved industrial burners
- Further fuel upgrading or blending
- Contract fuel processing to a defined specification
Use in engines, generators, vehicles or marine equipment is outside the basic distillation scope unless the final fuel passes all applicable tests and receives the required approvals.
12. Why Choose VBOLT
VBOLT prepares the equipment proposal from the actual waste-oil sample, required product fractions, available site utilities and local project requirements.
Feedstock-Based Engineering
- Sample and laboratory-data review
- Preliminary material balance
- Process and equipment configuration
- Utility and site-input definition
Project Support
- Equipment manufacturing and inspection documentation
- Installation guidance
- Operator and maintenance training
- Commissioning support
- After-sales technical support
- Spare-parts planning within the agreed contract scope
Request a Project Proposal
To receive a suitable process proposal and quotation, provide:
- Waste-oil types and sources
- Recent feed-oil laboratory report and representative sample
- Available daily and annual oil volume
- Required fuel fractions and product specification
- Site voltage, fuel, water, cooling and compressed-air conditions
- Local emission, wastewater, residue and fire-safety requirements
The VBOLT technical team can prepare a recommended process route, preliminary equipment list, material balance, utility requirements, layout proposal, commercial scope and delivery schedule.
Contact VBOLT to discuss a waste lubricating oil distillation and industrial fuel-fraction project.
